1 kN Capstan Grips for Yarn and Wire

• 概述
• 下載

特色:

• 適用於電線或導線形式的紗線和金屬的試驗
• 最大負載量 1 kN (220 lbf)
• 簡單設計包含用於對齊的上方夾具配重

相關材料：
紗線、金屬

相關試樣：
電線、導線

相關規範：
JIS L1013, JIS L1095

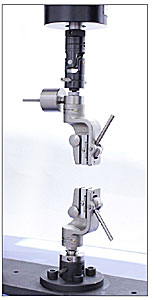

這些絞盤夾具適用於直徑小於 3 公釐 (0.12 英寸) 的紗線及金屬線材的拉伸試驗。平面夾持面用於固定試樣。夾持面由具有操作桿的凸輪開啟和閉合。易用及簡單設計，是這些用於紗線之 1 kN 絞盤夾具的優點。
