200 N and 1 kN Roller Grips

收藏

200 N and 1 kN Roller Grips

特色：

  • 用於彈性環的強度特性試驗
  • 同時包含 0.2 kN (44 lbf) 和 1 kN (220 lbf) 滾輪夾具組
  • 夾具組設計用於萬用試驗機的特定型號


相關材料：
橡膠

相關試樣：
環

相關規範：
ISO 37, ASTM D412, JIS K6251, JIS K7312

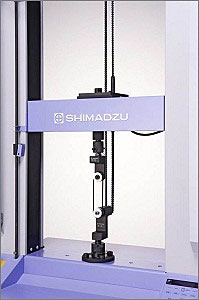

本滾輪夾具組包括 200 N (44 lbf) 及 1 kN (220 lbf) 滾輪夾具，可用於彈性橡膠環試樣的拉伸試驗。200 N 夾具有一個直徑 4.5 公釐 (0.18 英寸) 的滾輪。1 kN 夾具的滾輪直徑為 25 公釐 (0.98 英寸)。

試驗期間十字頭移動時，連接底部夾具和十字頭的鏈條會旋轉，導致環試樣旋轉，確保對試樣進行對稱試驗。由於此十字頭連接，會針對特定試驗機型號打造滾輪夾具組。
