5 kN Split-Drum Grips for Rope

• 概述
• 下載

特色:

• 適用於直徑 3 mm (0.12 in) 以下的繩索和絃線試驗
• 5 kN (1,100 lbf) 最大負載量
• 可選擇整合在夾具內的平行凹槽，或內嵌銼齒夾持面
• 試樣承受逐漸增加的張力時，會施加一個自動夾緊力量

相關材料：
紗線

相關試樣：
繩索、絃線

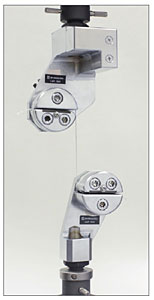

這些較低負載量的 5 kN (1,100 lbf) 裂鼓式夾具，適用於直徑 3 mm (0.12 in) 以下繩索和絃線的拉伸特性試驗。夾具內的滾筒直徑為 50 mm (2.0 in)，且試驗期間使用彈簧機構，施加穿越裂鼓式滾筒的夾持力。

夾具組包括上下夾具，且夾具組提供兩種夾持面選擇：整合平行凹槽夾持面，和內嵌銼齒夾持面。
