50 kN Capstan Grips for Heavy Cloth

• 概述
• 下載

特色:

• 適用於厚重布料拉伸試驗
• 最大負載量 50 kN (11,000 lbf)
• 適用於裂鼓式滾筒和絞盤設計
• 包含試驗期間的自動夾緊動作

相關材料：
厚重布料

相關試樣：
皮帶

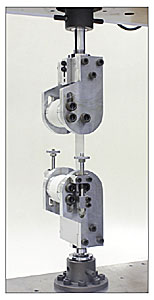

這些 50 kN (11,000 lbf) 夾具使用裂鼓式滾筒和絞盤，在拉伸試驗期間穩穩地固定容易打滑的試樣，例如厚重布料及皮帶。

裂鼓式滾筒內的夾持面具有凹槽，以增加試樣夾持，而上方夾具彈簧配重以確保在試驗期間，試樣軸匹配萬用試驗機的中心線。此外，下方夾具的裂鼓式滾筒由彈簧固定在一起，也可提升試樣夾持。
