50 kN Capstan Grips for Rope

收藏

50 kN Capstan Grips for Rope

特色:

  • 專門設計用於繩索試驗的夾具
  • 由於裂鼓式滾筒和絞盤，試驗期間會施加自動夾緊動作
  • 最大負載量 50 kN (11,000 lbf)
  • 有多種滾筒夾持面，可容納直徑 8 至 28 mm (0.31 至 1.1 in) 的試樣


相關材料：
紗線

相關試樣：
繩索

相關規範：
JIS L2701, JIS L2703, JIS L2704, JIS L2705

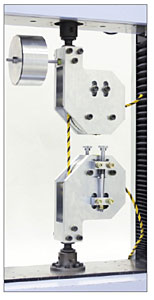

這些 50 kN (11,000 lbf) 絞盤夾具專為測試直徑 8 至 28 公釐 (0.31 至 1.1 英寸) 繩索的拉伸性能而設計。上部和下部夾具包含易於裝載的裂鼓式滾筒，上部夾具附有配重，可在試驗過程將夾具與萬能試驗儀的軸保持對齊。

夾具組包括裂鼓內側具有凹槽表面的上下夾具，以提升試樣的夾持。標準夾持面適用於直徑 8 至 12 mm (0.31 至 0.47 in) 的繩索。提供多種額外滾筒夾持面，以容納直徑最大 28 mm (1.1 in) 的繩索。
