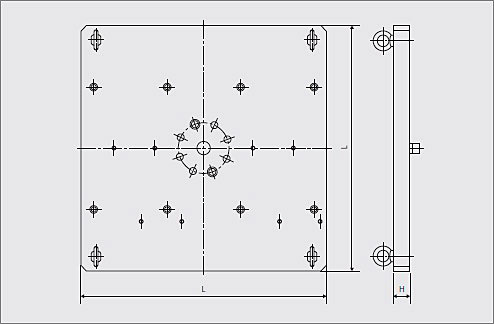

Flat Surface Plates for Compression Tests

收藏

Flat Surface Plates for Compression Tests

特色：

  • 擴展下方機台以進行大試樣和成品的試驗
  • 以螺栓直接固定到萬用試驗機機台內
  • 可用於 AG-X plus 系列標準型號、AGS-X 系列標準型號，和 AG-X plus 系列擴展寬度型號

平面平板為常用壓縮試驗配件，可擴展萬用試驗機的下方機台，以便針對大試樣和成品進行試驗。這些板以螺栓直接固定到萬用試驗機的機台內，且訂購時應配合萬用試驗機的特定容量和型號。

平面平板依據其可連接的萬用試驗機類型分類：AG-X plus 系列標準型號、AGS-X 系列標準型號，和 AG-X plus 系列擴展寬度型號，寬度 975 mm (38.4 in)。也具有 0 °C 至 40 °C (32 °F 至 104 °F) 的溫度範圍。

適用於壓縮試驗的平面平板，無法安裝在連接安全蓋的萬用試驗儀上。
