Optical Fiber Tensile Jig

特色:

  • 專門用於光纖和其他易脆纖維的拉伸試驗
  • 氣動動作減少夾持面的試樣打滑
  • 0.1 kN (22 lbf) 最大負載量


相關材料：
玻璃

相關試樣：
纖維

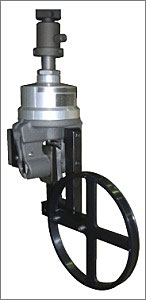

此治具專為光纖和其他易脆纖維的拉伸試驗而設計。夾具由上、下氣動平面夾具組成，平面夾持面帶有大直徑的絞盤。

氣動平面夾具在試驗期間施加恆定壓力，減少夾持面的試樣打滑，而大直徑絞盤減輕光纖上的應力，降低夾緊時的試樣斷裂風險。此外，絞盤本身施加自動夾緊動作，而兩個絞盤排列在試驗軸的對側，以減輕離軸力。

氣動平面夾具可使用 0.7 MPa (7 kgf/cm2, 102 psi) 的最大可操作氣壓。需要腳踏氣閥單元以開啟和閉合氣動平面夾具。光纖拉伸治具組內未包含空氣壓縮機。在特定地區，會透過配件形式提供空氣壓縮機。請聯絡當地島津代表以確認上市狀態。

操作所需的其他項目：
- 一台 0.7 MPa (7 kgf/cm2, 102 psi) 空氣壓縮機
- 腳踏氣閥單元
