UV-1900i Plus - 應用資訊

UV-Vis Spectrophotometer

收藏

{"hasMore":true,"more":{"id":"tbaleAnchor_more","label":"\u66f4\u591a"},"anchors":[{"id":"tbaleAnchor_applications","label":"\u61c9\u7528\u8cc7\u8a0a"},{"id":"tbaleAnchor_technical","label":"\u6280\u8853\u6587\u4ef6"},{"id":"tbaleAnchor_manual","label":"\u8aaa\u660e\u624b\u518a"}]} {"title":"\u61c9\u7528\u8cc7\u8a0a","columnTitle":"\u61c9\u7528\u8cc7\u8a0a","source":"product","key":5711,"filter_types":["applications","application_note","posters"],"config_list":[],"anchor":"tbaleAnchor_applications","filter":true} {"title":"\u6280\u8853\u6587\u4ef6","columnTitle":"\u6280\u8853\u6587\u4ef6","source":"product","key":5711,"filter_types":["technical","technical_reports","white_papers","primers"],"config_list":[],"anchor":"tbaleAnchor_technical","filter":true} {"title":"\u8aaa\u660e\u624b\u518a","columnTitle":"\u8aaa\u660e\u624b\u518a","source":"product","key":5711,"filter_types":["manuals"],"config_list":[],"anchor":"tbaleAnchor_manual","filter":true}

食品

  • 以下為食品色素分析的應用範例。透過超高速掃描模式，可大幅縮短例行性光譜檢測所需時間。 在 350 nm 至 900 nm 波長範圍內，以 1 nm 間隔進行測量，約 4 秒即可完成。

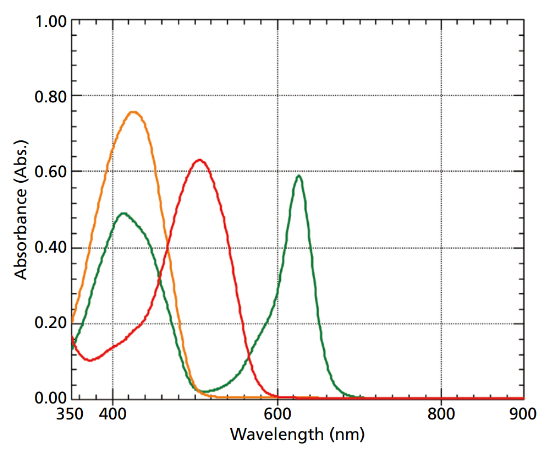

  • Absorption Spectra of Food Dyes
    Absorption Spectra of Food Dyes

製藥與生命科學

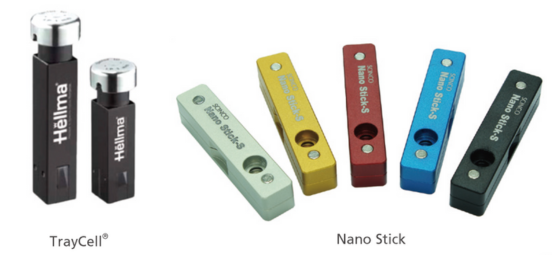

  • 以下為 λDNA 分析的應用範例。搭配 Nano Stick 與 TrayCell®，即可測量微量樣品（僅需數微升）。
    使用 TrayCell 時，可在 25 ng/µL 至 500 ng/µL 的濃度範圍內，以 4 µL 的 λDNA 樣品建立校正曲線。
  • Pharmaceuticals and Life Sciences

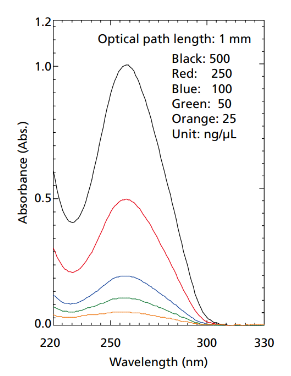

  • Spectrum of λDNA

    λDNA的光譜圖

  • Calibration Curve of λDNA

    λDNA的校正曲線



化學

透過 LabSolutions UV-Vis 搭配色度分析軟體，可對材料進行定量確認。
LabSolutions UV-Vis色度分析軟體可顯示 xy 與 L/a/b 等色度系統的色度圖，或 Hazen 色度指標。

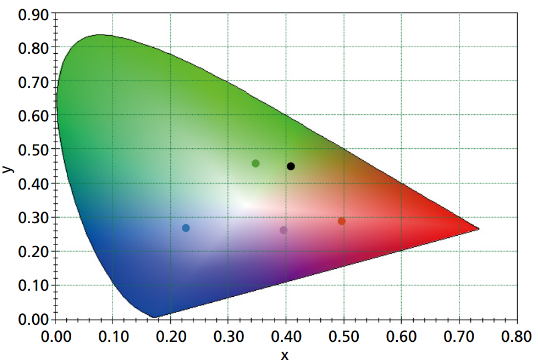

  • Chromaticity Diagram of XY Color System

    xy色度系統的色度圖

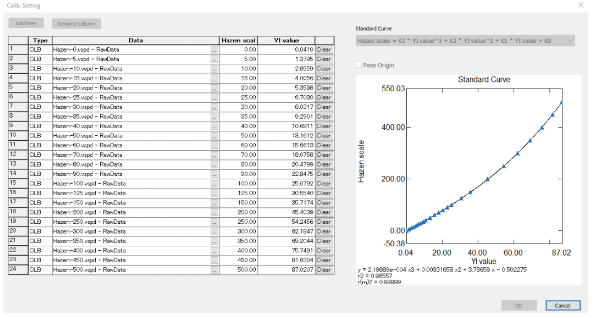

  • Calibration Curve of Hazen Color

    Hazen 色度的校正曲線
