Xslicer SMX-6010

SMX-6010 CT微焦點X射線透視檢查裝置

收藏

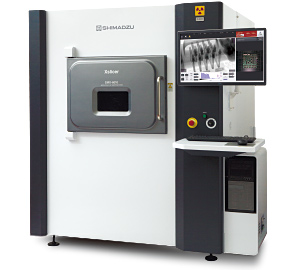

Xslicer SMX-6010

Xslicer SMX-6010 是一個平面 X 光檢測系統，具有微焦點 X 光發生器和 3 百萬畫素平面檢測器。
可提供具有寬動態範圍的高度準確影像，能夠詳細觀察內部結構和缺陷。
此外，系統可平順切換透視檢查和電腦斷層 (CT)，進行符合樣品形狀的多種觀察。
這可支援多種樣品的檢測，包括改良小型化的電子零件，到具備進階高密度多層設計的安裝板。

特色

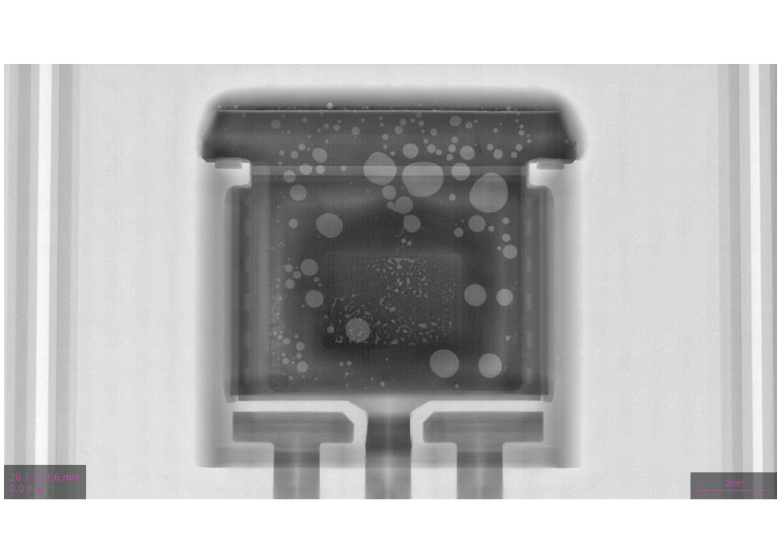

  • High-Accuracy Imaging
    高準確度成像
    High-accuracy images with a wide dynamic range are obtained thanks to the 3 megapixel flat panel detector and Shimadzu’s unique HDR processing.
    * HDR: High Dynamic Range

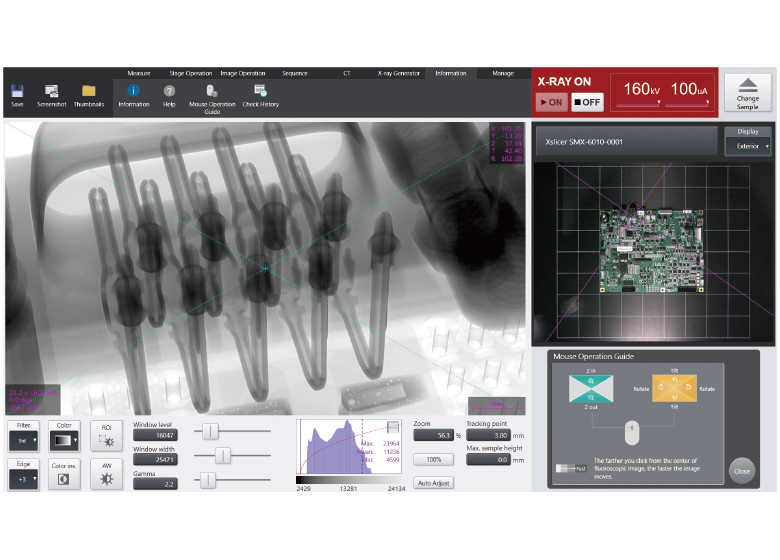

  • Simple Operation
    簡易操作
    三個步驟就可開始透視成像。透過簡單的 UI設備，不論操作人員的經驗程度，都可輕鬆開始成像。單一按鈕可切換透視檢查和 CT。可配合樣品輕易切換成像方法。

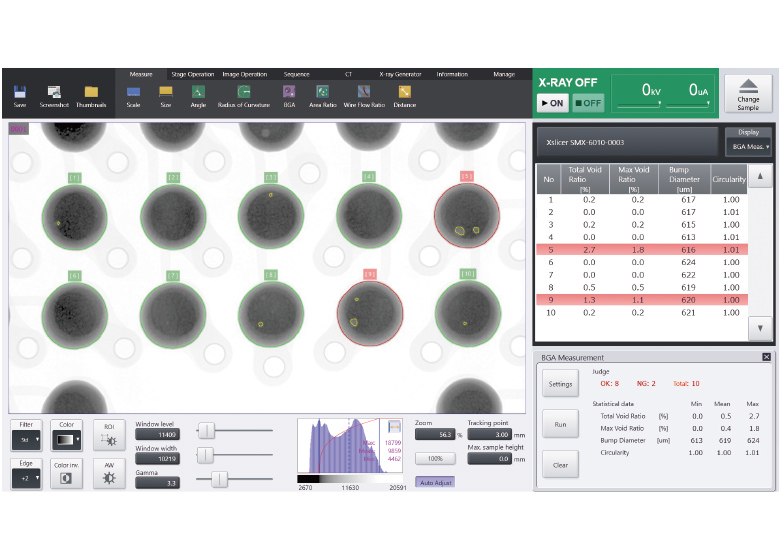

  • Versatile, User-Friendly Functions
    多用途、使用者友善功能
    Xslicer SMX-6010 具有教學功能和逐步移動，可以連續進行透視檢查和 CT 成像，以及多種測量功能，可以取得影像的測量數值。這可協助操作人員進行檢測，並減少檢測中所需的人力。
更多詳情
